Domain Adaptation and Image-to-Image Translation

Arthur Pesah
Master's student at KTH

Sebastian Bujwid
DL Engineer at Univrses + ML MSc student at KTH

That's what we call...

...domain adaptation

Domain adaptation

One task (classification, segmentation...)

Two datasets

Image-to-image translation

• One way of doing domain adaptation is to use image-to-image translation methods
• Goal: translate an image, e.g. synthetic -> real
• But can be used for other purposes than domain adaptation

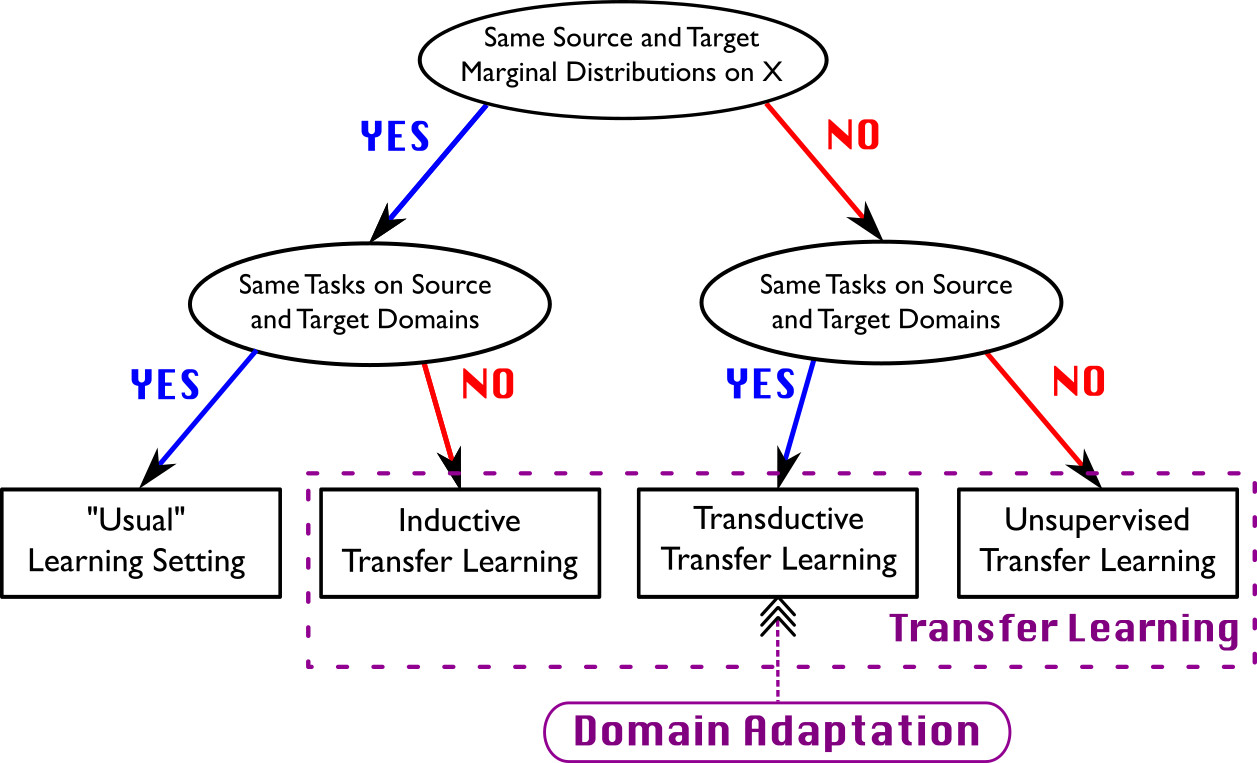

Relation with transfer learning

Applications of domain adaptation

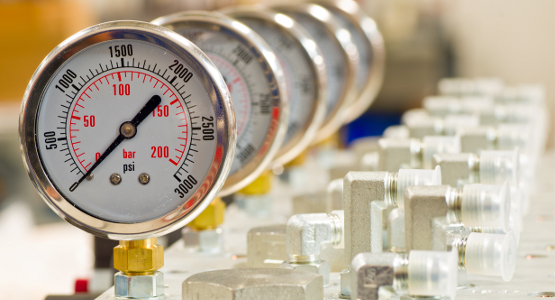

Calibration (physics, biology...)	Simulation vs Reality

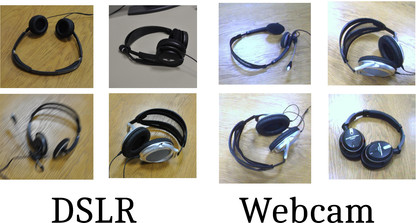

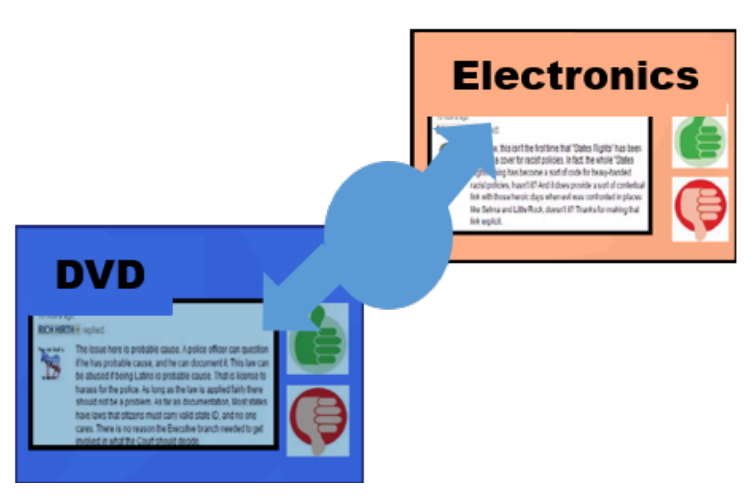

Sentiment analysis between different categories	Adaptation between cameras

Applications of image-to-image translation: synthetic data

• Data can be very expensive to obtain and annotate.
• Synthetic data is relatively cheap and contains ground-truth information, but it's usefulness is limited due to a domain shift.




Applications of image-to-image translation: synthetic data

• Real data is often even impossible to annotate, because of not all the information is present on just an image:
  • Oclussions
  • No 3D information (depth)

Applications of image-to-image translation: synthetic data

• Take syntetic data and make it real!
Sure, we GAN!

Image-to-image translation methods for the win

Different flavours of domain adaptation

Different flavours of image-to-image translation

Supervised image-to-image translation

• Supervision - correspondence between samples in the datasets

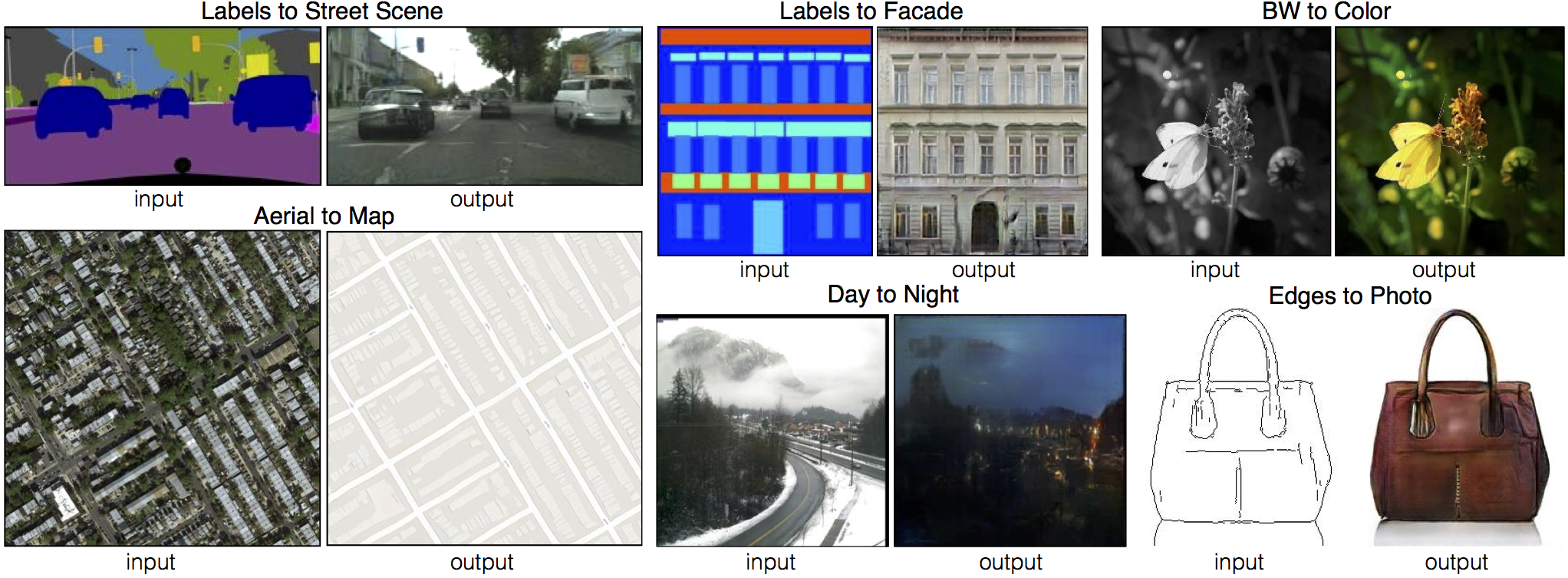

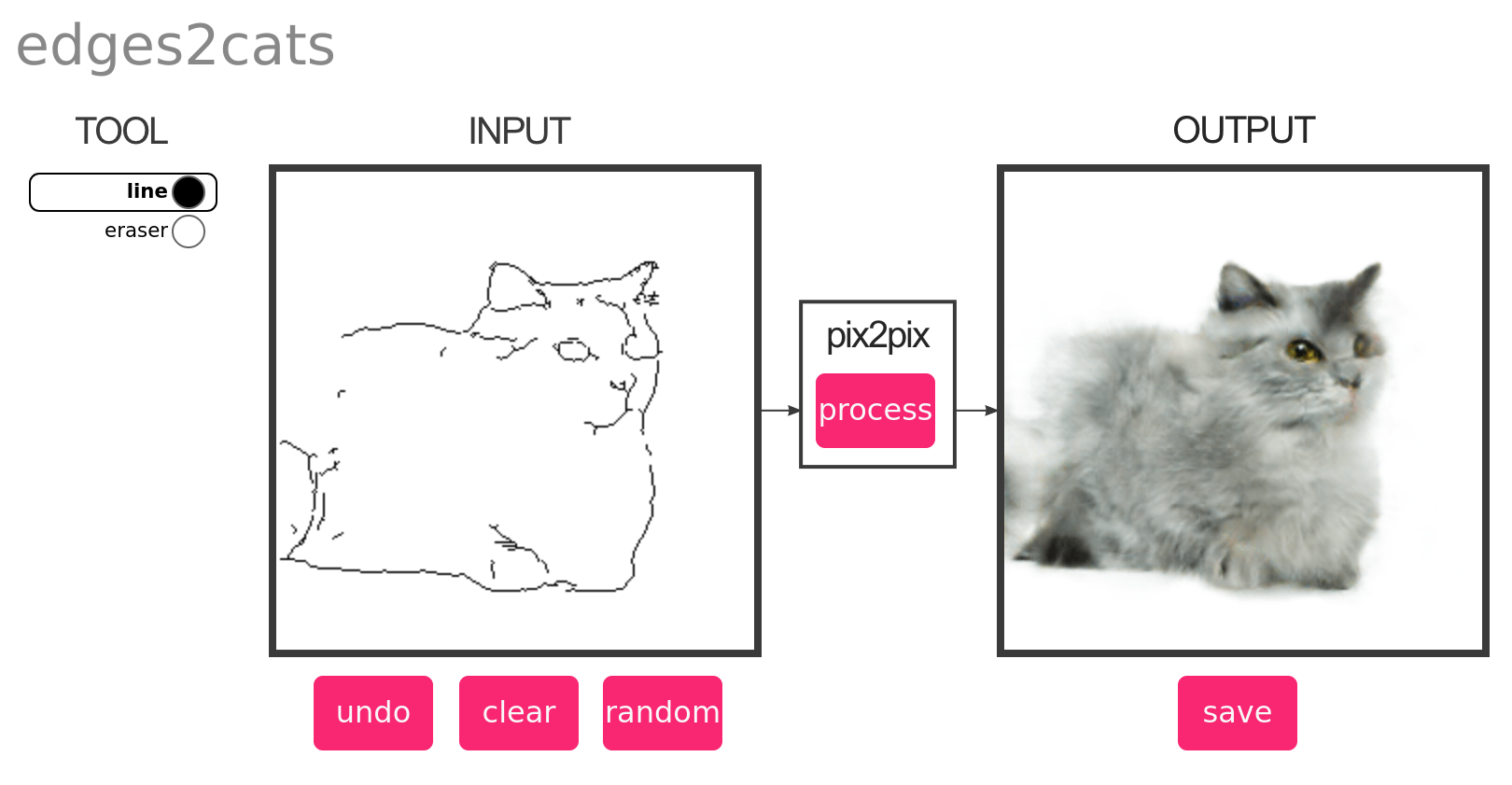

pix2pix - https://phillipi.github.io/pix2pix/
Conditional GAN
• source sample passed to the generator
• the discriminator sees pairs: corresponding source & target images

Unsupervised image-to-image translation

• More challenging - relation between datasets not present in the data
• But also more interesting - practically often impossible to get create datasets with one-to-one correspondences

Synthetic images

Real images

• What is the relation between images from different domains?

Classical model of domain adaptation

(Ben David et al., 2010)

• Probabilistic perspective: we consider two distributions $P(X_s, Y_s)$ and $P(X_t, Y_t)$ for source and target samples/labels
• Discrepency between the domains: \[ \epsilon_T(h) \leq \epsilon_S(h) + \frac{1}{2} d_{H\Delta H}(X_s, X_t) + \lambda(VC) \] where $h \in \mathcal{H}$ is a classifier, $\epsilon_{S/T}$ the error on the source/target distribution and
  \[ d_{H\Delta H}(X_s, X_t) = 2 \sup_{h,h' \in \mathcal{H}} | \mathbb{E}_{x \sim X_s}[h(x) \neq h'(x)] - \mathbb{E}_{x \sim X_t}[h(x) \neq h'(x)] | \]
• Goal: finding $f: \chi_s \rightarrow \chi_t$ to minimize $\frac{1}{2} d_{H \Delta H}(X_s, f(X_t))$ and $h$ to minimize $\epsilon_S(h)$

Classical model of domain adaptation

(Ben David et al., 2010)

\[ d_{H\Delta H}(X_s, X_t) = 2 \sup_{h,h' \in \mathcal{H}} | \mathbb{E}_{x \sim X_s}[h(x) \neq h'(x)] - \mathbb{E}_{x \sim X_t}[h(x) \neq h'(x)] | \]

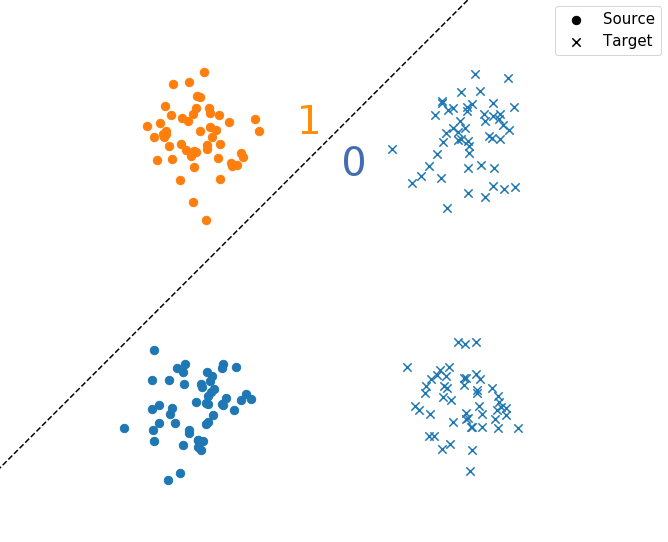

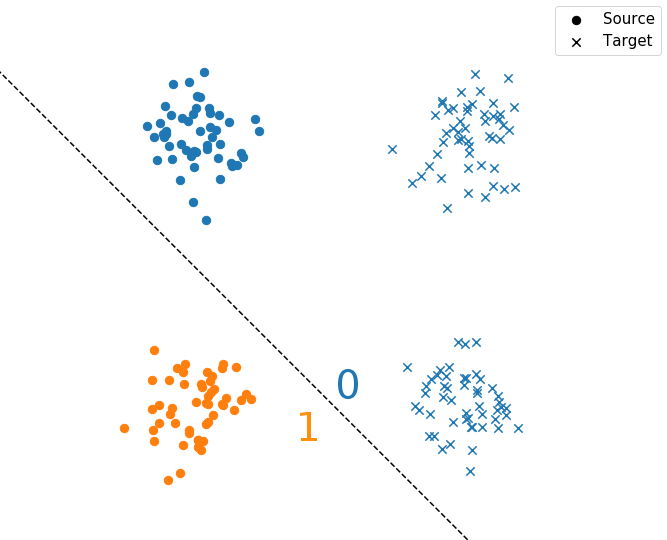

Hypothesis 1	Hypothesis 2

To which extent can we find two hypothesis very similar in one domain, but very different in the other

Classical model of domain adaptation

• But this theoretical distance is hard to compute, so even harder to minimize with any classicial optimization algorithm... We have to find other distances
• In probability theory, we often use divergences

Definition. Let $S$ be a space of probability distributions. A divergence $D: S \times S \rightarrow \mathbb{R}$ is a function such that:



1. $D(P, Q) \geq 0$ for all $P,Q \in S$
2. $D(P,Q) = 0 \iff P=Q$
• Examples: KL-divergence, Wasserstein distance, JS-divergence, etc.
• Most DA algorithms consists in choosing a divergence and minimizing it

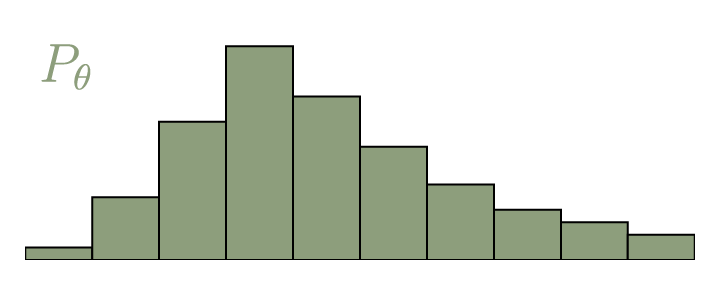

Optimal Transport

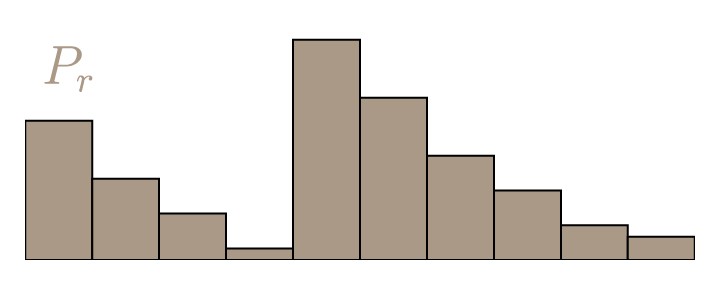

• Mathematical framework describing how to minimize the Earth Mover Distance, also called Wasserstein Distance $\mathrm{W}(P_r,P_{\theta}) = \inf_{\gamma \in \Pi} \, \sum\limits_{x,y} \Vert x - y \Vert \gamma (x,y)$

(Courtesy Vincent Herrmann)

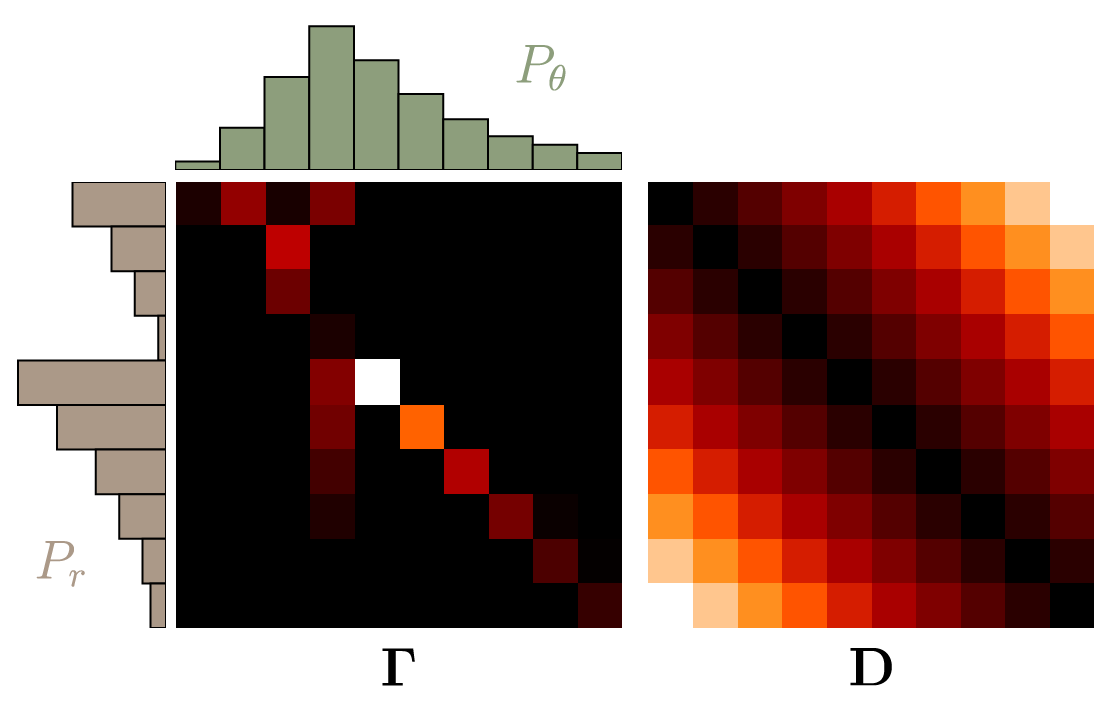

Optimal Transport

• Mathematical framework describing how to minimize the Earth Mover Distance, also called Wasserstein Distance $\mathrm{W}(P_r,P_{\theta}) = \inf_{\gamma \in \Pi} \, \sum\limits_{x,y} \Vert x - y \Vert \gamma (x,y)$


(Courtesy Vincent Herrmann)

• $\mathrm{W}(P_r,P_{\theta})=\inf_{\gamma \in \Pi} \, \langle \mathbf{D}, \mathbf{\Gamma} \rangle_\mathrm{F}$

Optimal Transport

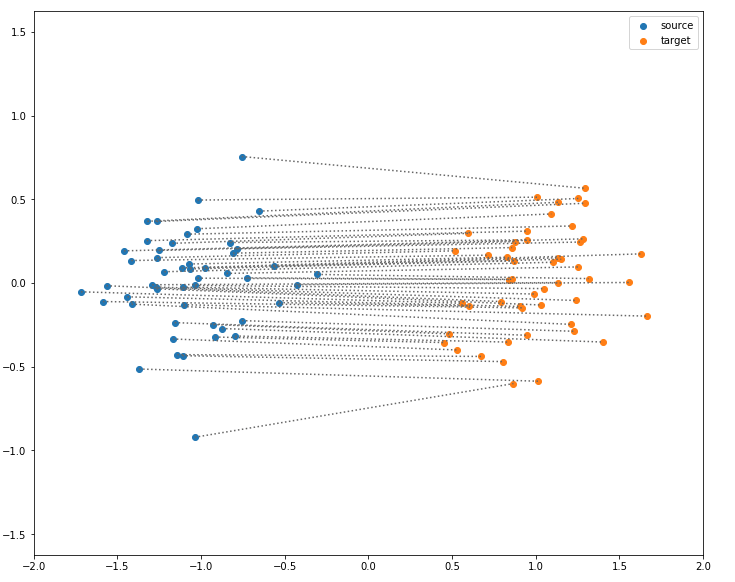

Special case: empirical distribution (uniform distribution on every sample)

(Made with the optimal transport library POT)

$\mathrm{W}(P_r,P_{\theta}) = \inf_{\gamma \in \Pi} \, \sum\limits_{i,j} \Vert x_i - y_j \Vert \gamma (x_i,y_j)$ with $\gamma (x_i,y_j) \in \{0,1\}$

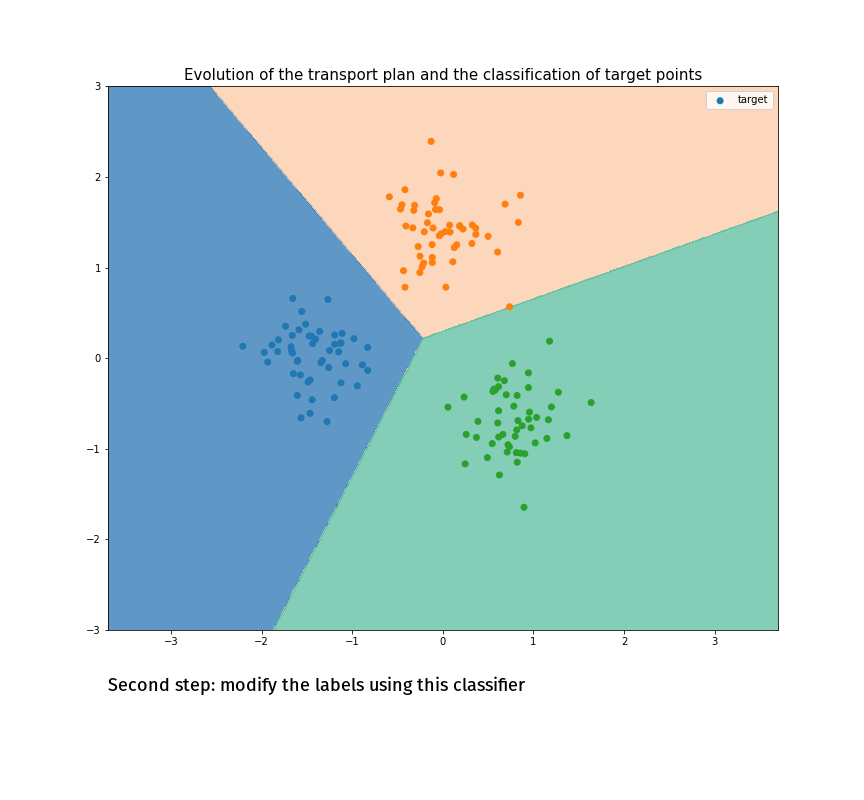

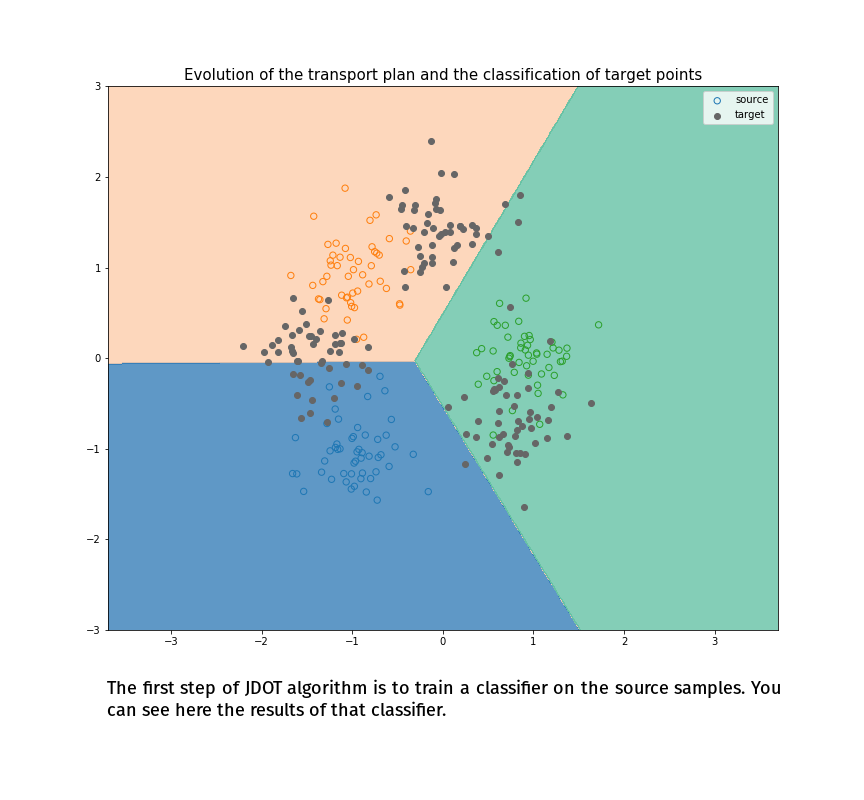

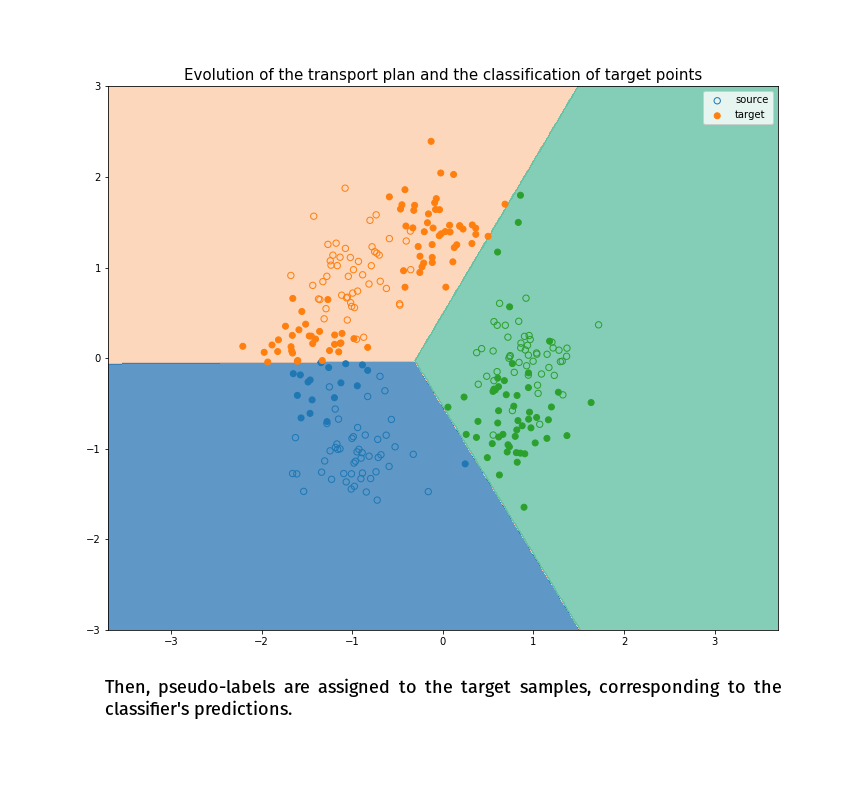

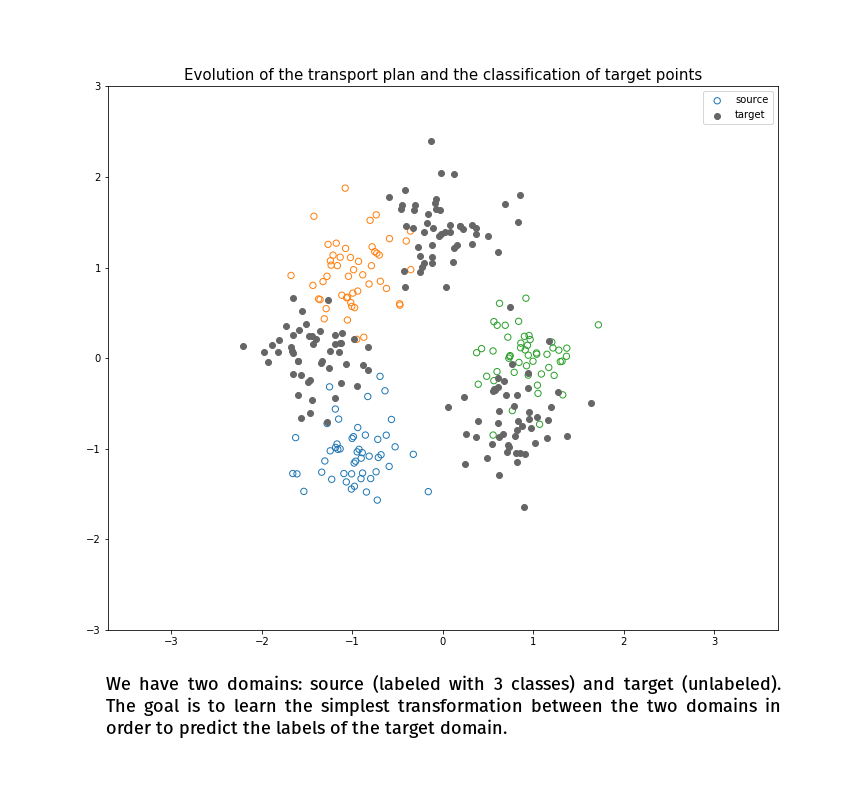

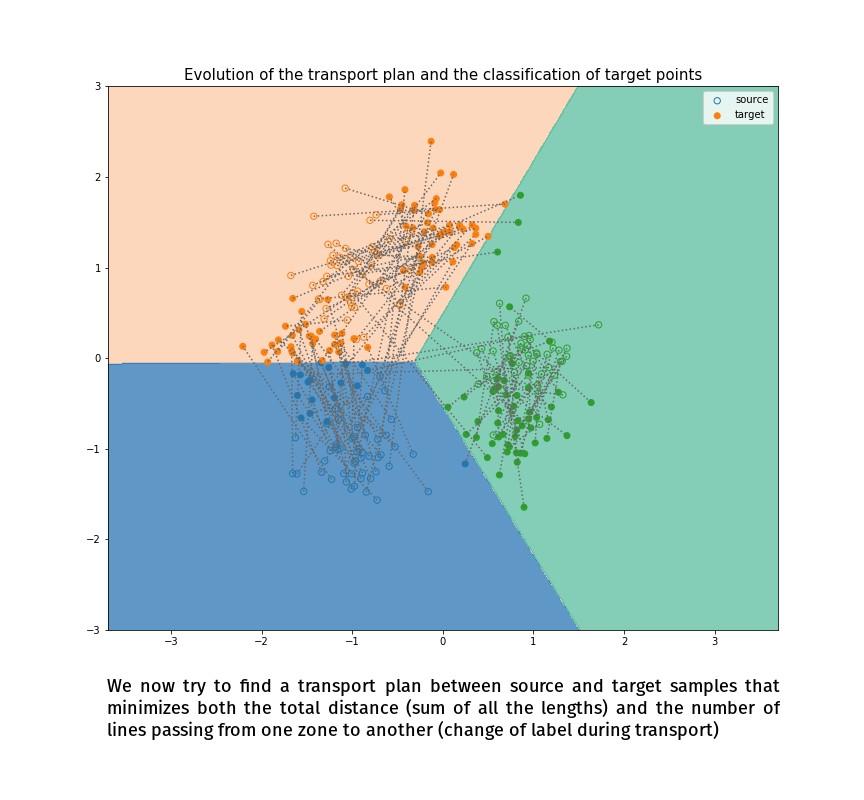

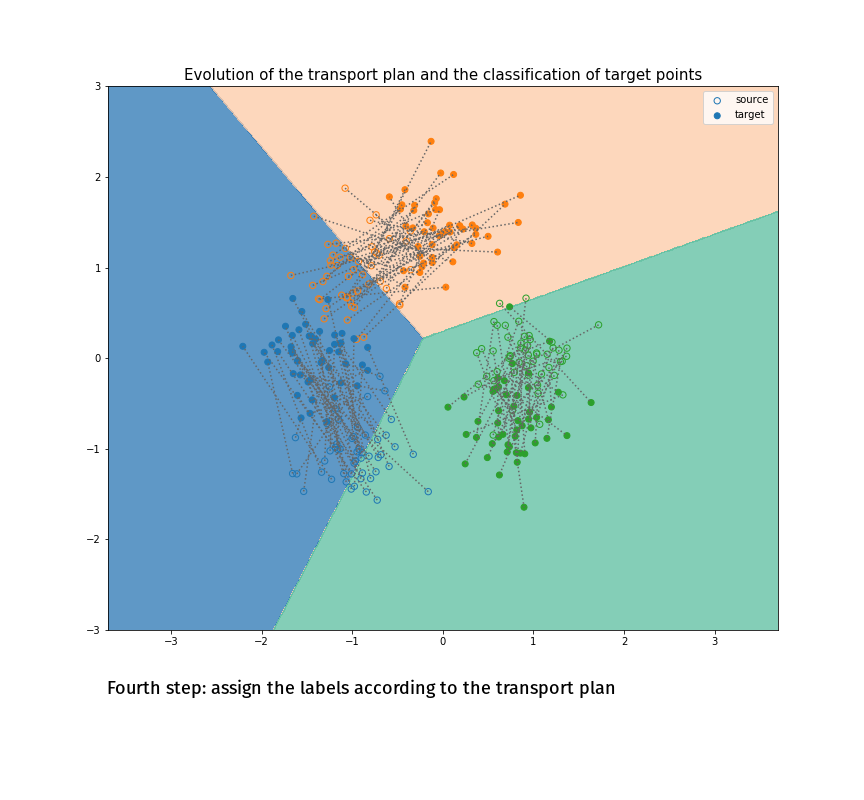

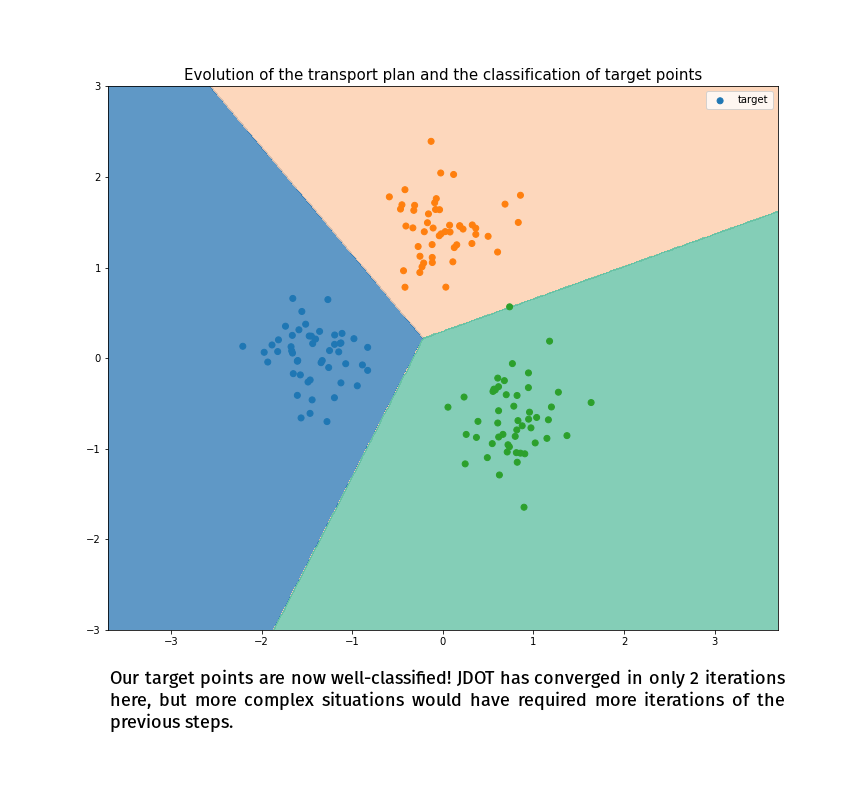

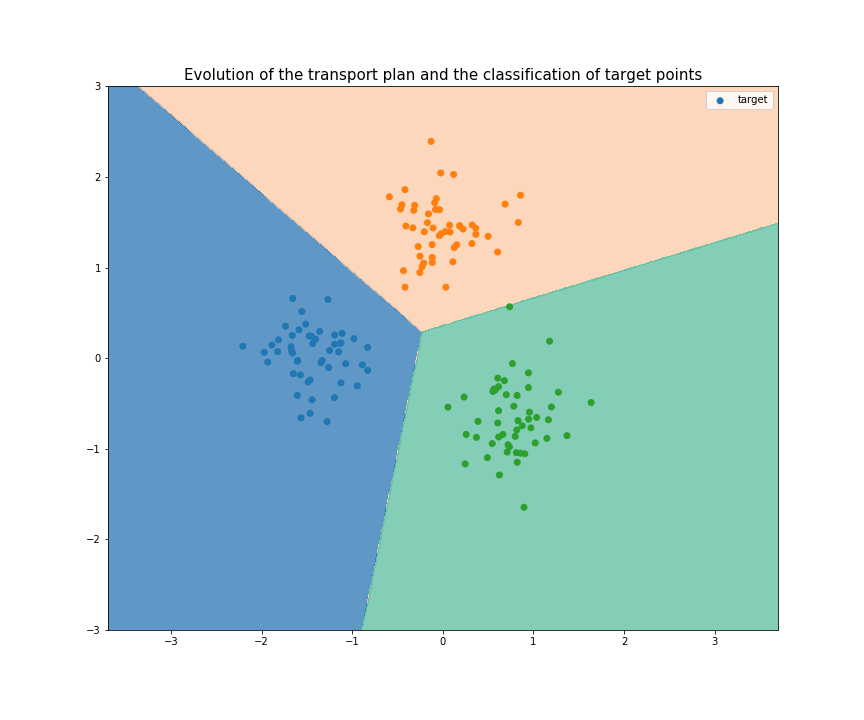

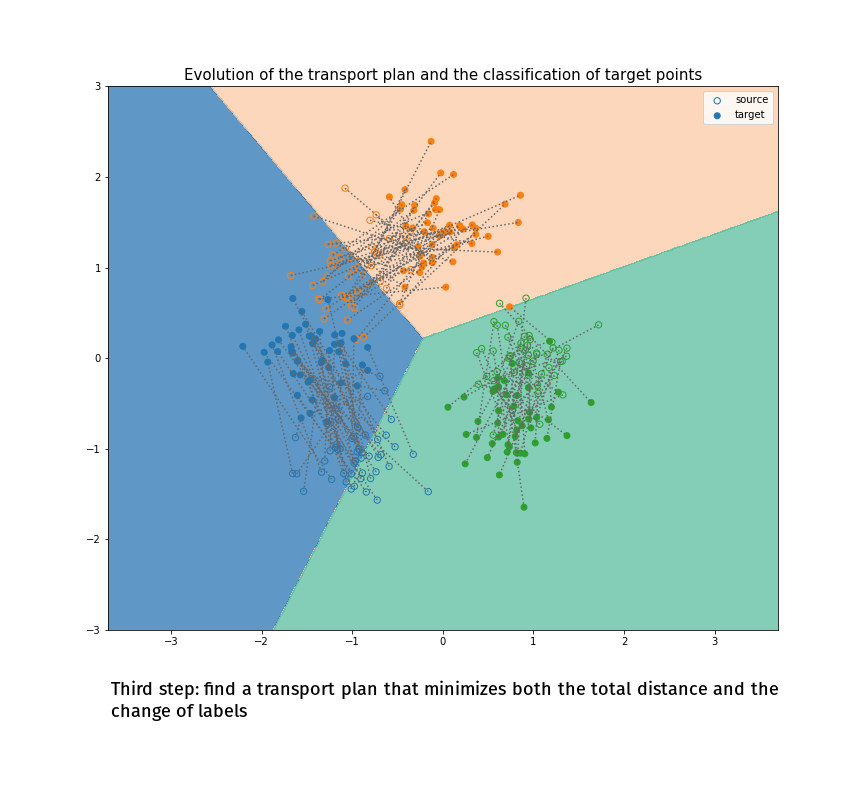

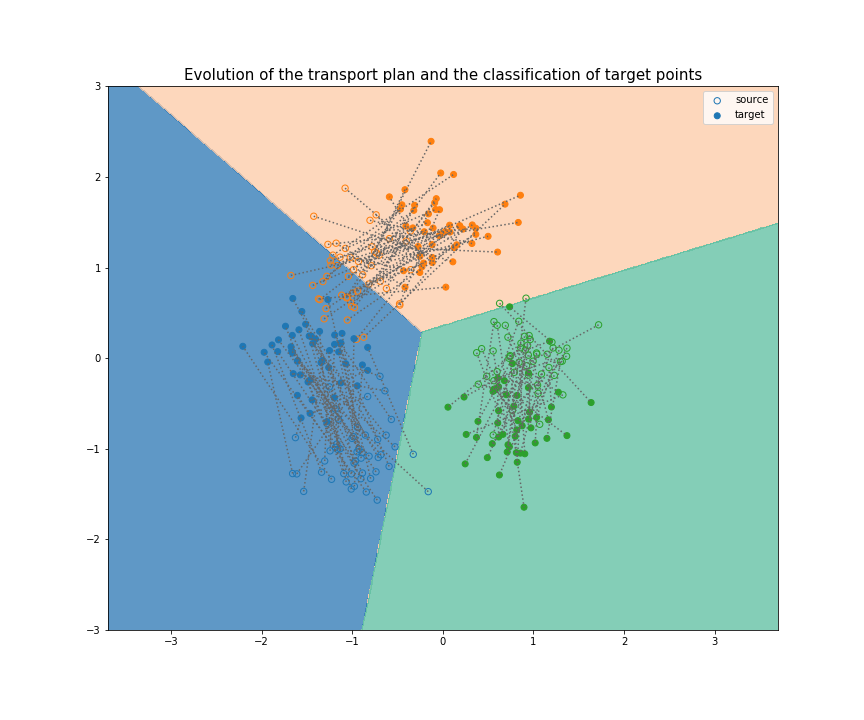

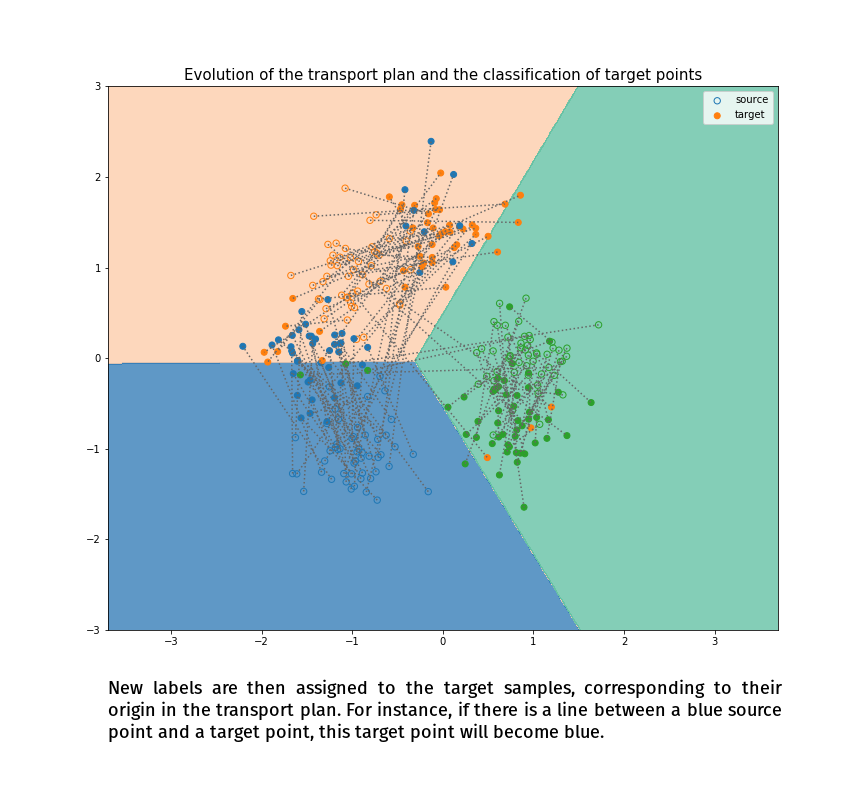

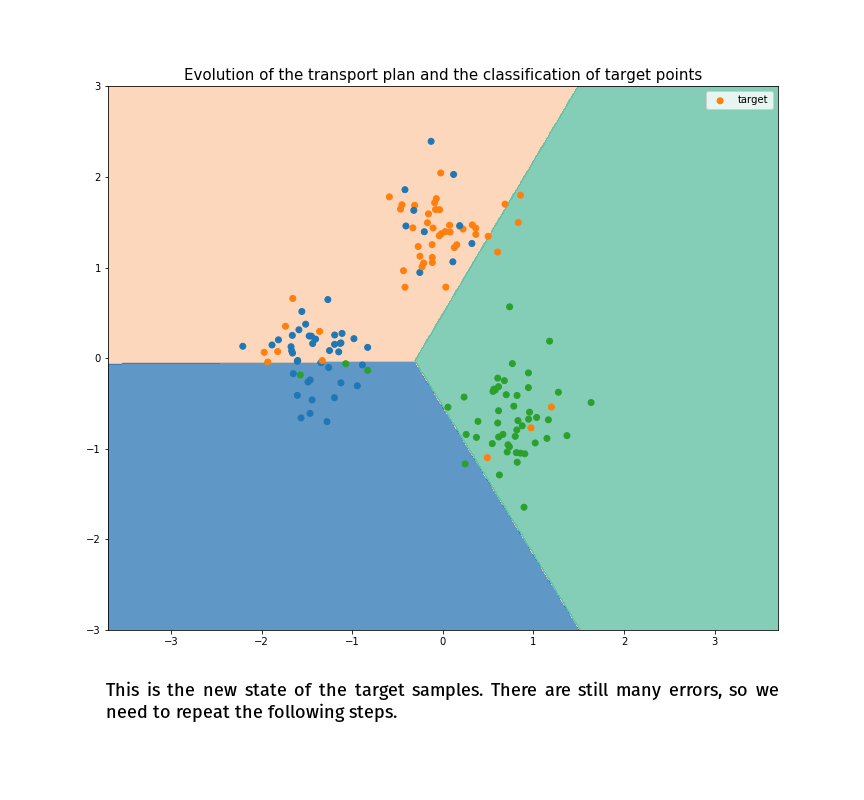

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Joint Distribution Optimal Transportation

(Courty et al., 2017)

(Made with the optimal transport library POT)

Deep JDOT

(Damodaran et al., 2017)

Recent improvements of the first paper:

• Learn optimal transport in an embedding space (instead of the input space)
• Iterative algorithm:
• For a fixed transport plan, learn an embedding network that make the linked points closer, and a classifier on the pseudo-labels
• For a fixed embedding and classifier, learn the best transport plan

Adversarial Domain Adaptation

• Revolution in domain adaptation starting with Ganin et al., 2015
• Using GAN-like deep architectures to minimize the Jensen-Shannon divergence between our distributions
• Adversarial domain adaptation framework:
  • A conditional generator that takes a target input and tries to generate a source-like output
  • A discriminator that tries to separate real source samples from source-like generated samples
  • The generator tries to make the discriminator bad
• Almost all the recent DA papers are variations on that structure

Adversarial Domain Adaptation

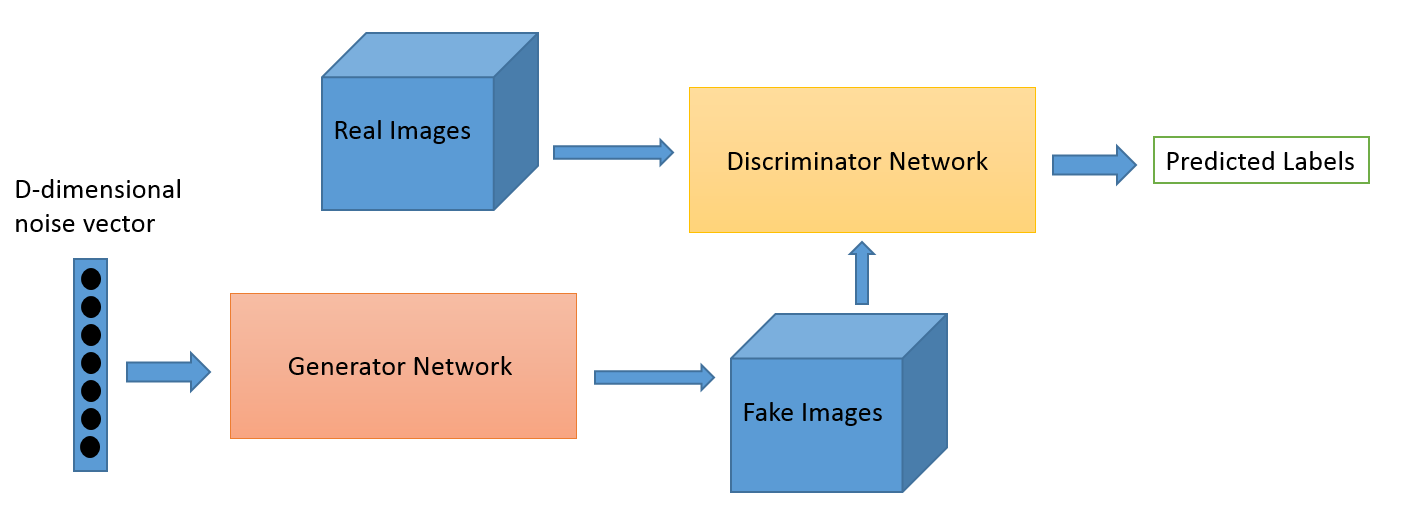

Classical GAN architecture:

Domain Adaptation: replace the input noise by a target image

Adversarial Domain Adaptation

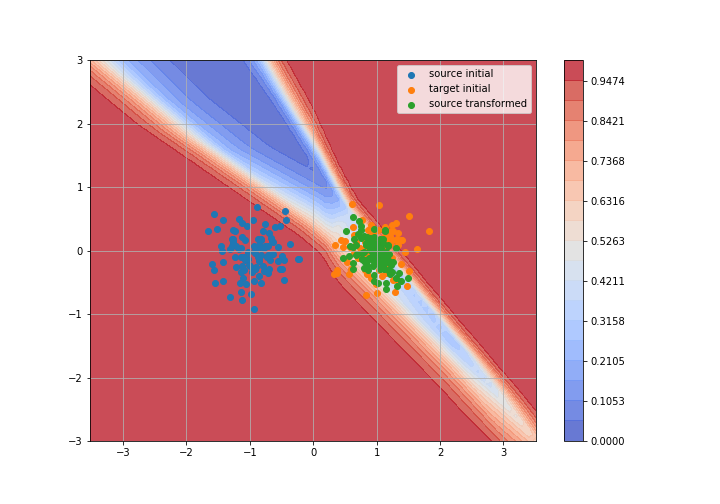

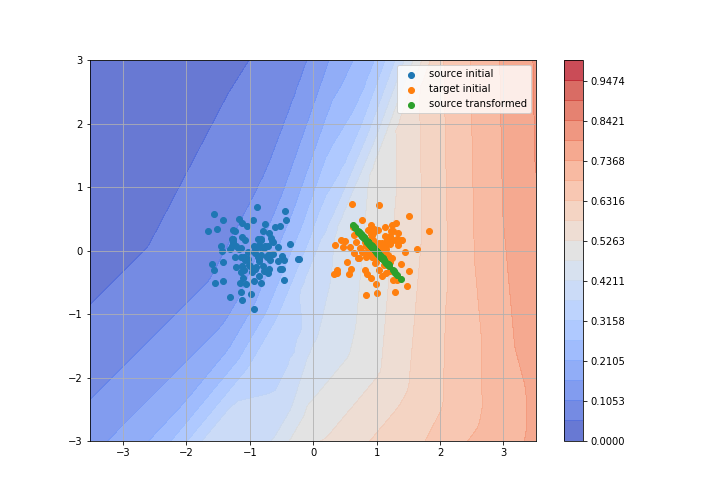

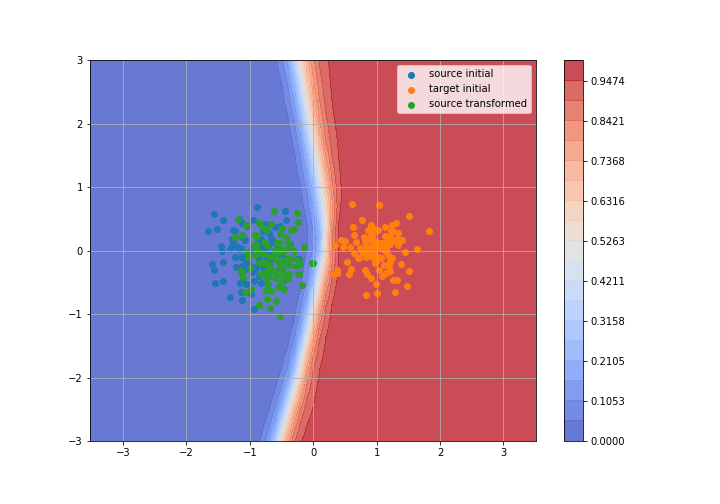

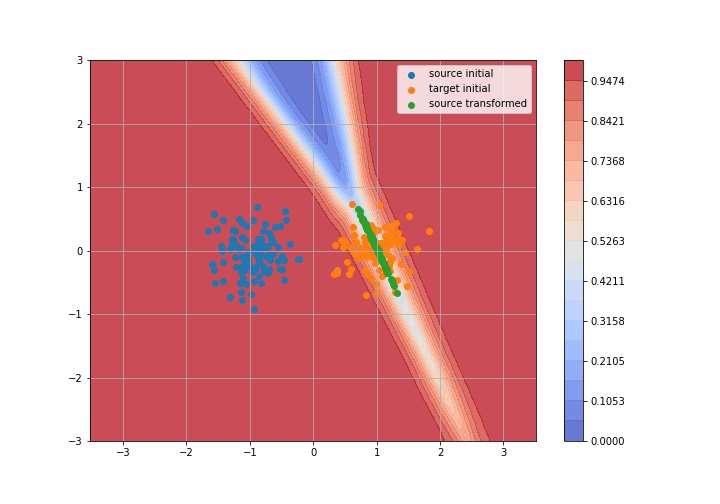

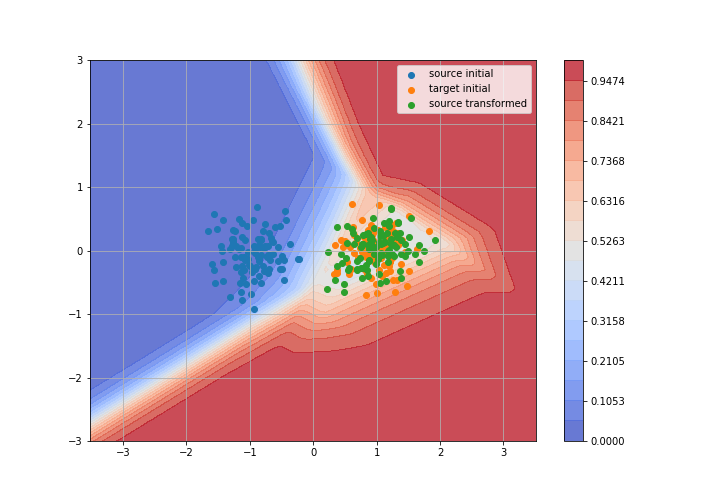

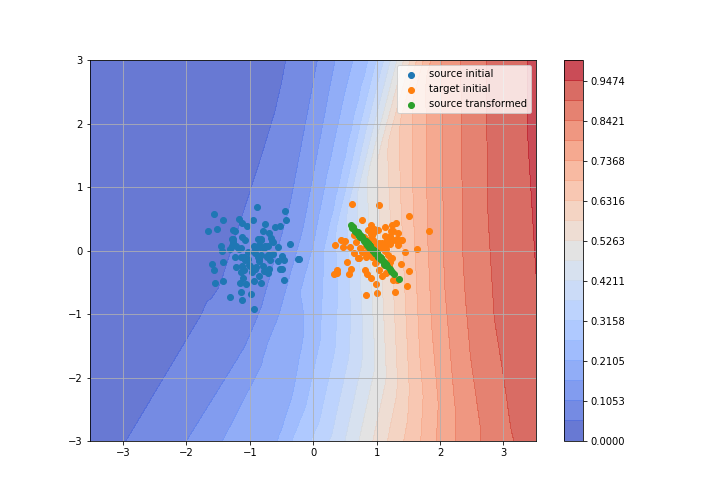

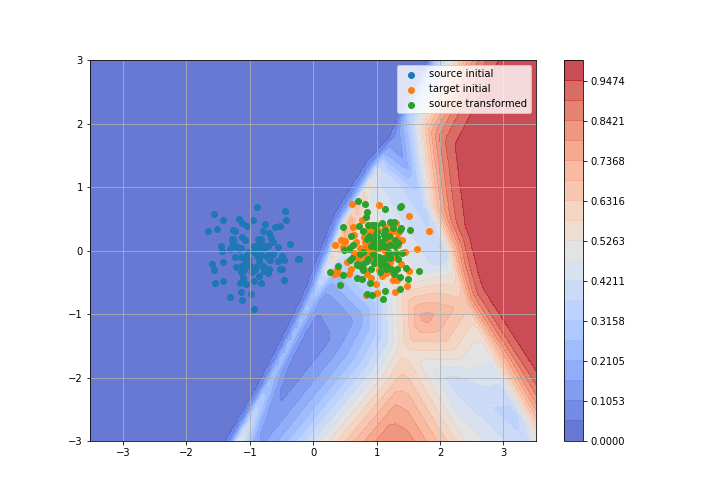

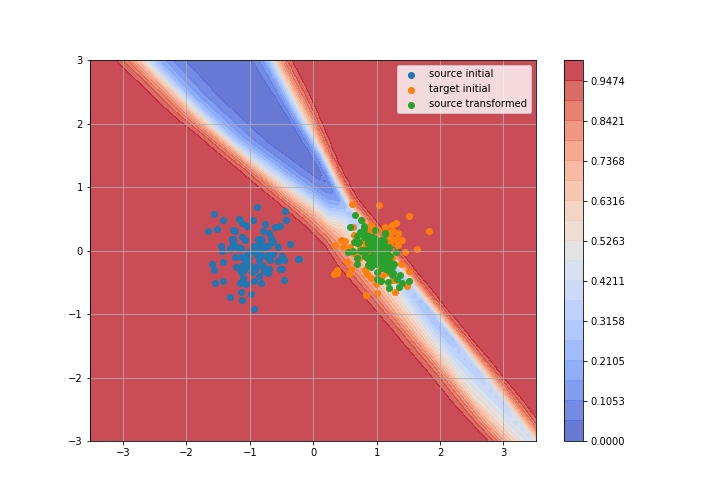

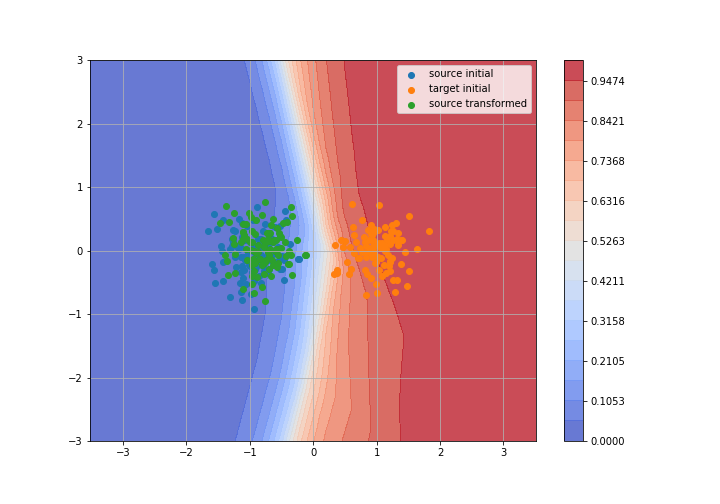

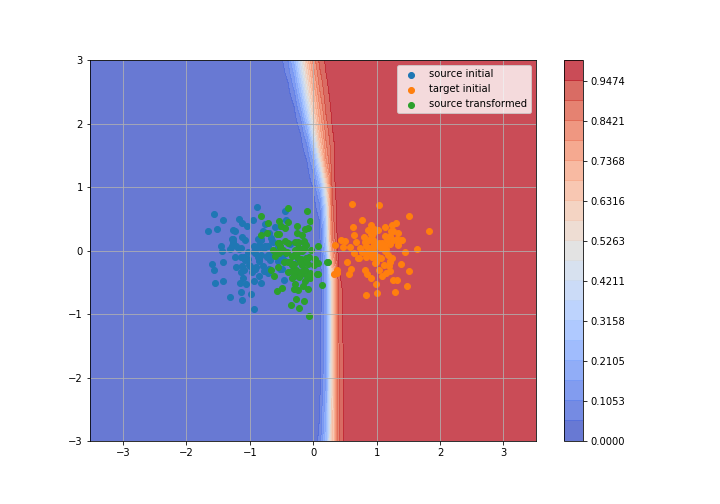

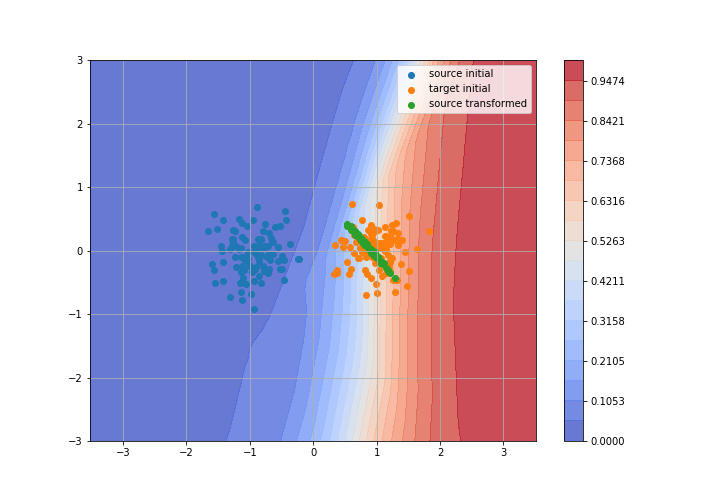

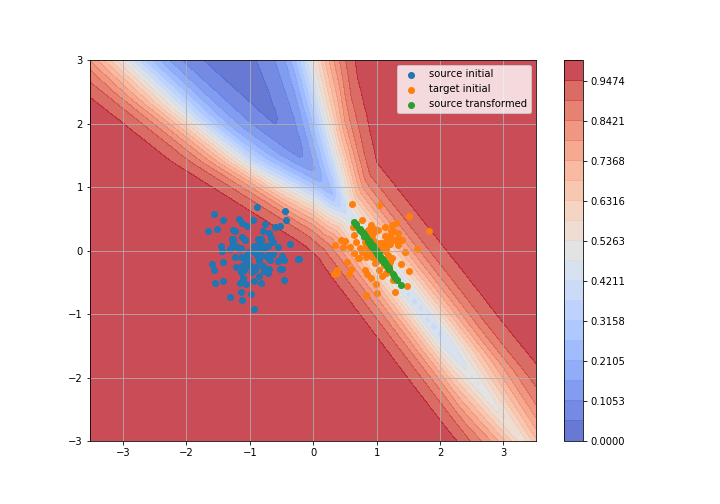

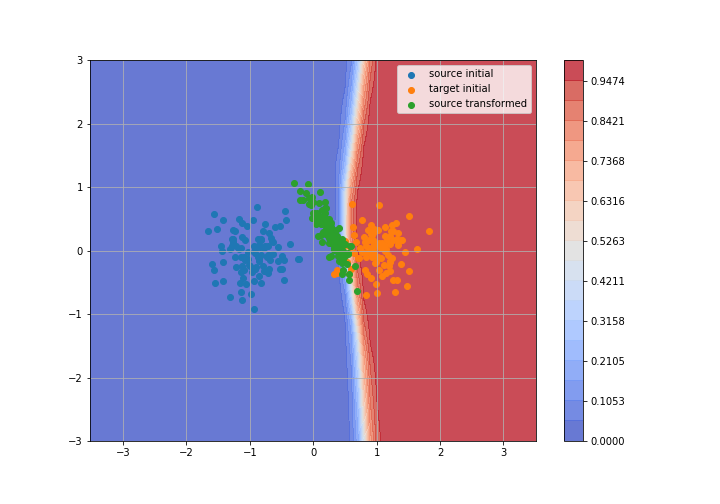

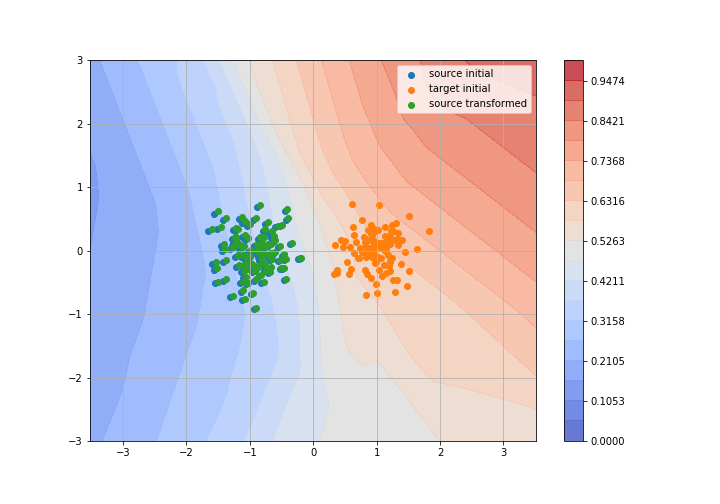

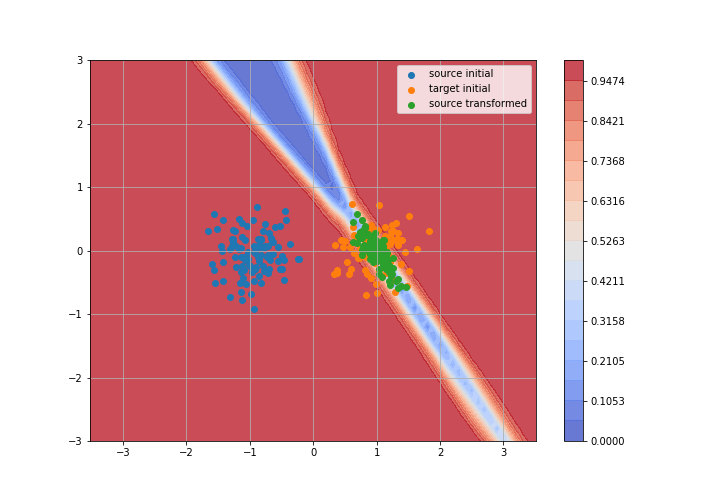

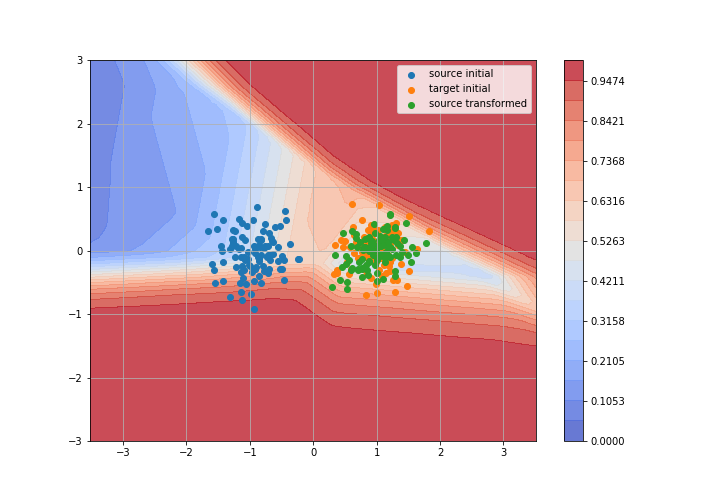

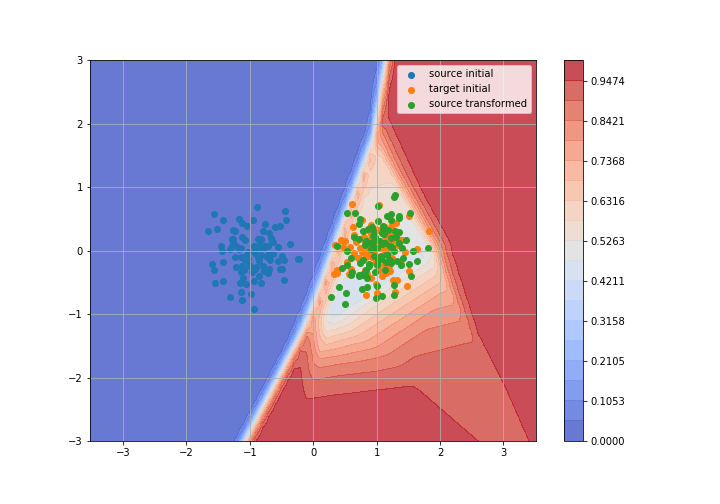

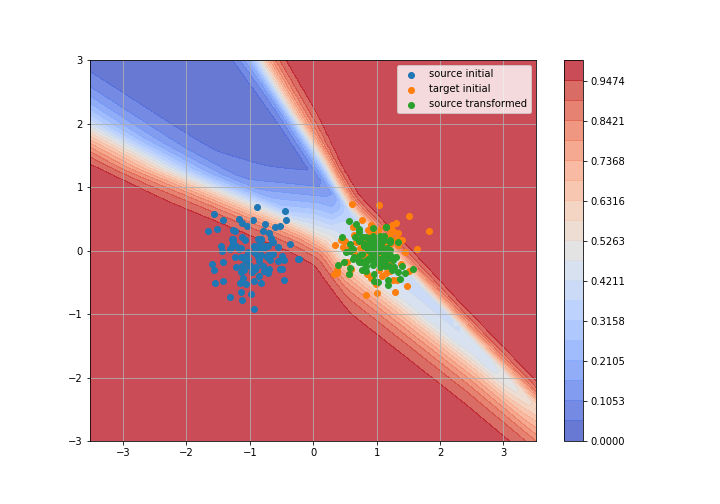

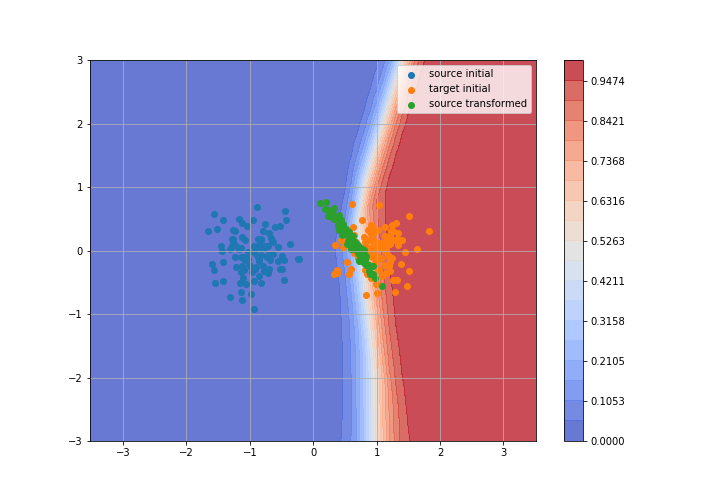

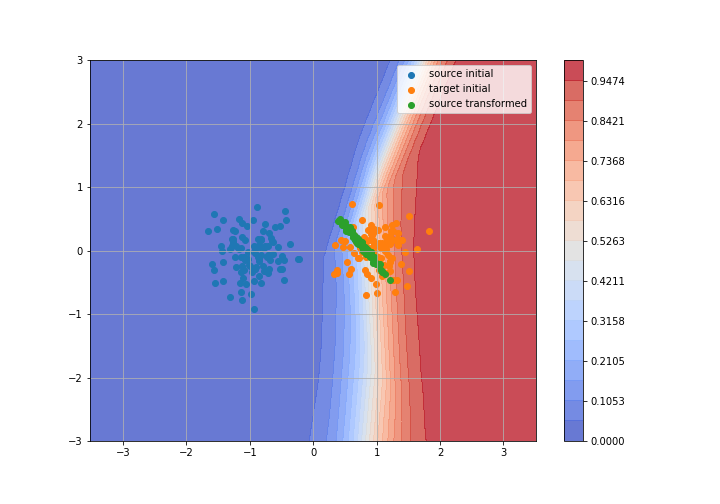

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Adversarial Domain Adaptation

Toy example: 2D gaussians

Cycle-GAN

(Zhu et al., 2017)

Cycle-GAN

(Zhu et al., 2017)

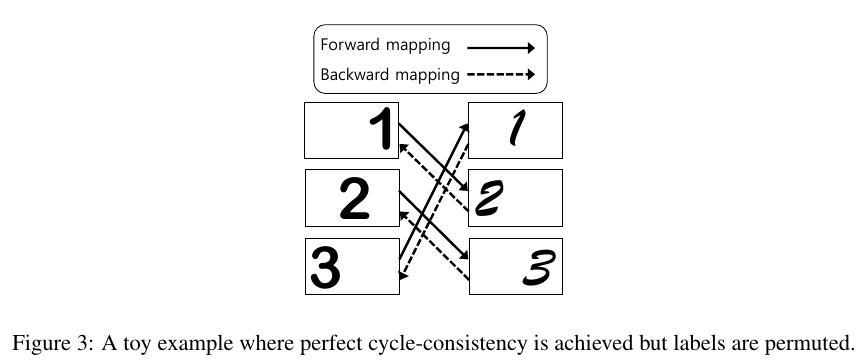

• Cycle-consistency assumption
\[ F_{TS}(F_{ST}(x_S)) \approx x_S \]
It's an approximate assumption - we don't want (can't have) it

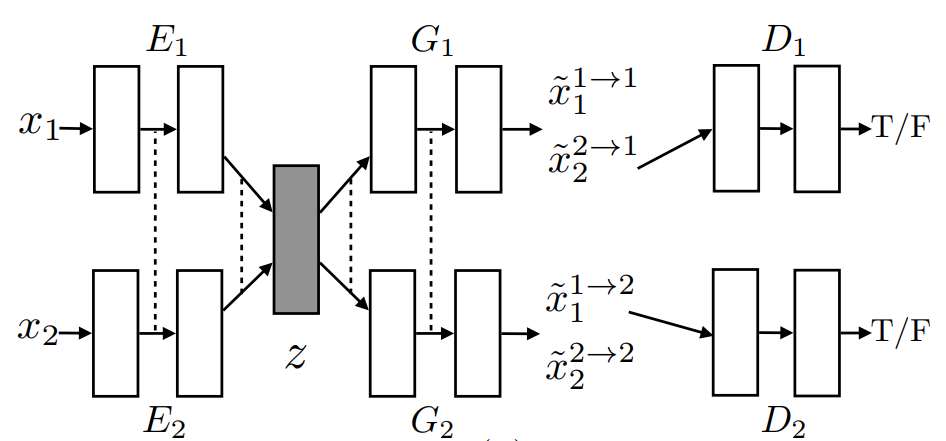

UNsupervised Image-to-Image Translation (UNIT)

(Liu et al., 2017)

• Hypothesis: shared latent-space
• Training: VAE and GAN

UNsupervised Image-to-Image Translation (UNIT)

(Liu et al., 2017)

Extra regularize the latent space

State-of-the art algorithm: VADA-DIRT-T

(Shu et al., 2017)

• Virtual Adversarial Domain Adaptation (VADA)
• Adversarial Method: find an embedding space invariant between the two domains and a hypothesis that classify the source in this embedding space

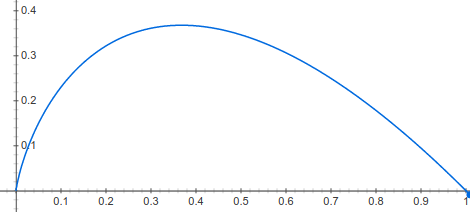

• Cluster Assumption: the decision-boundary should not cross high-density regions ⇒ the output probability should be extreme (high-confidence) ⇒ $\min_{\theta} \mathbb{E}_{x \in \mathcal{D_t}}[-h_{\theta}(x) \log(h_{\theta}(x))] $
• Virtual Adversarial Training: the hypothesis should be invariant to slight perturbation of the input (adversarial examples). We can minimize the KL divergence between $h_{\theta}(x)$ and $h_{\theta}(x+r)$ for $||r||<\epsilon$

State-of-the art algorithm: VADA-DIRT-T

(Shu et al., 2017)

Evolution of domain adaptation results

On the MNIST-SVHN benchmark

(Russo et al., 2017)

SVHN (source) → MNIST (target)

Resources

• Awesome Transfer Learning: curated list of papers, datasets and other resources in domain adaptation and transfer learning (https://github.com/artix41/awesome-transfer-learning)
• Domain Adaptation in 2017: blog article (https://artix41.github.io/static/domain-adaptation-in-2017/)
• Introduction to optimal transport for GANs: blog article (https://vincentherrmann.github.io/blog/wasserstein/
• Computational Optimal Transport (2017): online book by Peyré and Cuturi, excellent visual introduction to OT
